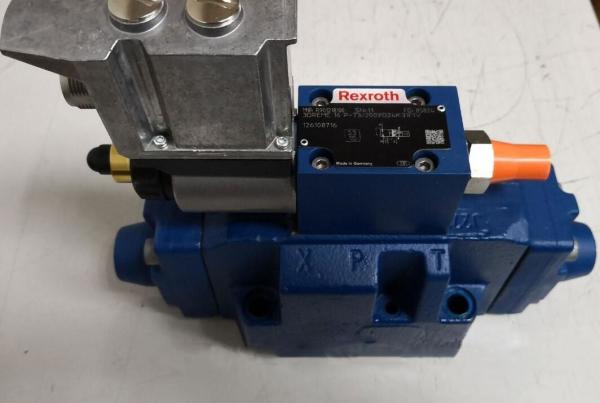

    R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve

    Ask Lasest Price
    Brand Name : Rexroth
    Model Number : R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V
    Price : On request
    Payment Terms : T/T, Western Union
    Supply Ability : 100PCS per month
    Delivery Time : 7-10days
    • Product Details
    • Company Profile

    R901218100 3DREME16P-73/200YG24K31F1V 3DREME16P-7X/200YG24K31F1V Proportional Pressure Reducing Valve

    Proportional pressure reducing valve, pilot-operated
    3DRE(M)E
    Size 10, 16
    Component series 7X
    Maximum set pressure 315 bar
    Maximum flow 300 l/min
    Features
    3-way version
    Operation by means of proportional solenoid with rotatable coil
    For subplate mounting
    Porting pattern according to ISO 4401
    Maximum pressure limitation, optional
    Valve and control electronics from a single source
    Integrated electronics (OBE) with little manufacturing tolerance of the command value pressure characteristic curve
    Linear command value pressure characteristic curve
    Type Code :
    01020304050607080910111213
    3DREEP-7X/G24K31*
    01Proportional pressure reducing valve in 3-way version, pilot-operated3DRE
    02Without maximum pressure limitationno code
    With maximum pressure limitationM
    03With integrated electronics (OBE)E
    04Size 1010
    Size 1616
    05Subplate mountingP
    06Component series 70 … 79 (70 … 79: unchanged installation and mounting dimensions)7X
    Pressure rating
    07Up to 50 bar50
    Up to 100 bar100
    Up to 200 bar200
    Up to 250 bar (NG16 only)250
    Up to 315 bar (NG10 only)315
    08Internal pilot oil supply, external pilot oil returnY
    External pilot oil supply, external pilot oil returnXY
    Power supply
    09Direct voltage 24 VG24
    Electrical connection
    10Without mating connector; connector DIN EN 175201-804K31
    Interfaces of the control electronics
    11Command value input 0 ... +10 VA1
    Command value input 4 ... 20 mAF1
    Seal material (observe compatibility of seals with hydraulic fluid used, see "Technical data")
    12NBR sealsM
    FKM sealsV
    13Further details in the plain text

    *

    SAAR specialized in pumps, motors, valves, bearings, couplings, gearbox, engine spare parts, filter elements, fittings, connectors, electronic components and accessories, mobile equiupment spare parts.
    Proportional pressure reducing valve, pilot-operated 3DRE(M)E on Sale, Short lead time, Best price!!!
    R9012221733DREME 16 P-7X/200YG24K31F1M
    R9012566893DREME10P-7X/100XYG24K31A1V
    R9014517523DREME10P-7X/100XYG24K31F1V
    R9012422543DREME10P-7X/100YG24K31A1V
    R9012757673DREME10P-7X/100YG24K31F1V
    R9012299773DREME10P-7X/200XYG24K31A1V
    R9012201133DREME10P-7X/200YG24K31A1V
    R9012320783DREME10P-7X/200YG24K31F1M
    R9012180973DREME10P-7X/200YG24K31F1V
    R9012521393DREME10P-7X/315XYG24K31A1V
    R9012407453DREME10P-7X/315YG24K31A1V
    R9012234813DREME10P-7X/315YG24K31F1V
    R9012932113DREME10P-7X/50YG24K31A1V
    R9012221723DREME10P-7X/50YG24K31F1M
    R9013087723DREME10P-7X/50YG24K31F1V
    R9014484113DREME16P-7X/100XYG24K31A1V
    R9012638973DREME16P-7X/100XYG24K31F1V
    R9012619793DREME16P-7X/100YG24K31A1V
    R9012389353DREME16P-7X/100YG24K31F1V
    R9012987763DREME16P-7X/200XYG24K31A1V
    R9012940583DREME16P-7X/200XYG24K31F1V
    R9012310673DREME16P-7X/200YG24K31A1V
    R9012181003DREME16P-7X/200YG24K31F1V
    R9012294663DREME16P-7X/250YG24K31A1V
    R9013096233DREME16P-7X/250YG24K31F1V
    R9013418323DREME16P-7X/50YG24K31A1V
